The benefit in Obtaining the Implementing Cisco Enterprise Network Core Technologies (350-401 ENCOR)
This exam will help you:
- Earn 64 CE credits toward recertification
- Implement security principles within an enterprise network
- Configure, troubleshoot, and manage enterprise wired and wireless networks
This exam is for:
- Network administrators
- Help desk technicians
- Network support technicians
- Mid-level network engineers
Related Certification: CCNP Enterprise
Enterprise networking continues to witness massive growth ever since Cisco introduced a new certification curriculum in early 2020. This is best shown by the increasing popularity of the Cisco CCNP Enterprise certification, which does much more than just equipping you with vital IT skills. The new CCNP Enterprise training embodies success with enterprise networking technologies and to obtain it, you must pass two exams: the aforementioned Cisco 350-401, which is a core validation, and one additional concentration exam. That being said, the full list of the concentration tests associated with this learning path includes 300-410, 300-415, 300-420, 300-425, 300-430, and 300-435 exams.
NEW QUESTION 66
What the role of a fusion in an SD-Access solution?
- A. provides connectivity to external networks
- B. acts as a DNS server
- C. performs route leaking between user-defined virtual networks and shared services
- D. provides additional forwarding capacity to the fabric
Answer: C
NEW QUESTION 67
Which entity is responsible for maintaining Layer 2 isolation between segments In a VXLAN environment?
- A. host switch
- B. switch fabric
- C. VNID
- D. VTEP
Answer: C
Explanation:
Reference:
VXLAN uses an 8-byte VXLAN header that consists of a 24-bit VNID and a few reserved bits. The VXLAN header together with the original Ethernet frame goes in the UDP payload. The 24-bit VNID is used to identify Layer 2 segments and to maintain Layer 2 isolation between the segments.
NEW QUESTION 68

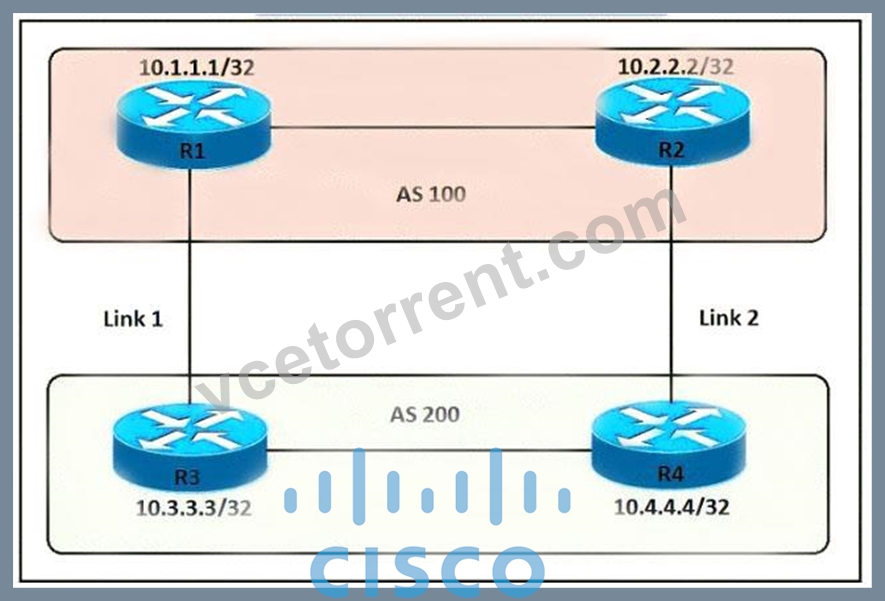

Refer to the exhibit.
An engineer must ensure that all traffic leaving AS 200 will choose Link 2 as the exit point. Assuming that all BGP neighbor relationships have been formed and that the attributes have not been changed on any of the routers, which configuration accomplish task?
- A. R4(config-router)nighbor 10.2.2.2 weight 200
- B. R3(config-router)bgp default local-preference 200
- C. R3(config-router)neighbor 10.1.1.1 weight 200
- D. R4(config-router)bgp default local-preference 200
Answer: D
Explanation:
Explanation
Local preference is an indication to the AS about which path has preference to exit the AS in order to reach a certain network. A path with a higher local preference is preferred. The default value for local preference is 100.
Unlike the weight attribute, which is only relevant to the local router, local preference is an attribute that routers exchange in the same AS. The local preference is set with the "bgp default local-preference In this case, both R3 & R4 have exit links but R4 has higher local-preference so R4 will be chosen as the preferred exit point from AS 200.
NEW QUESTION 69

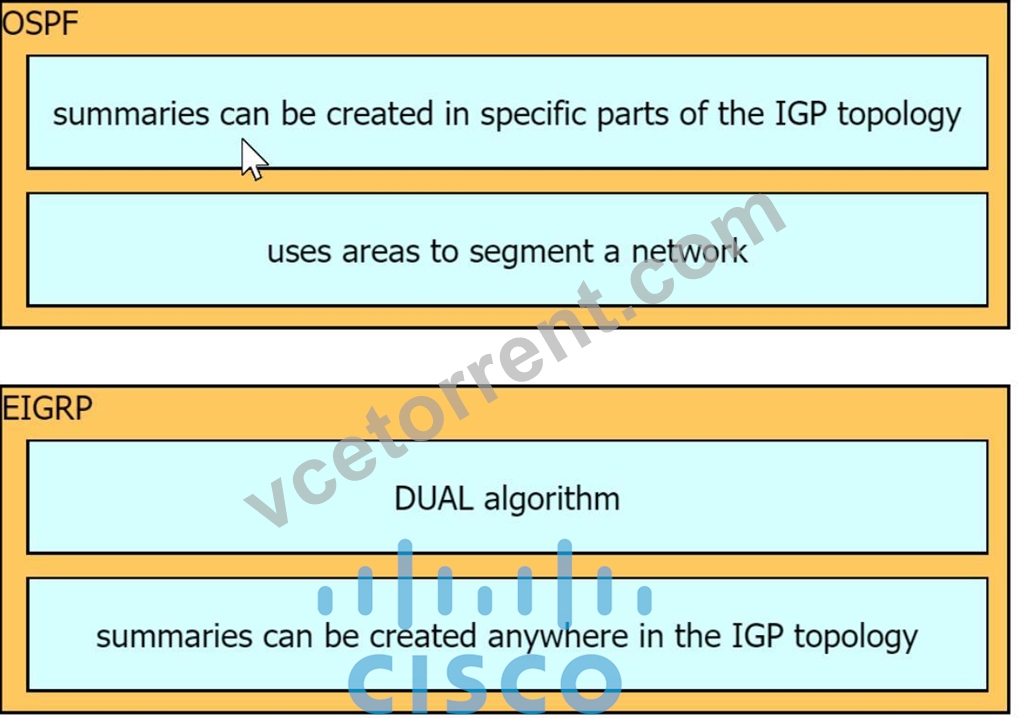

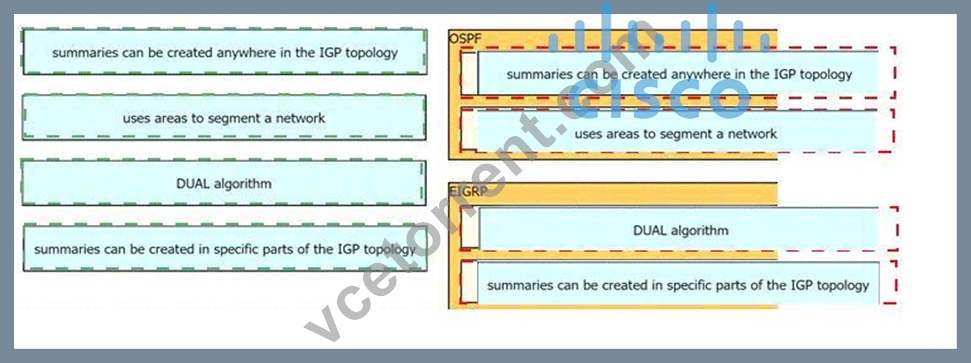

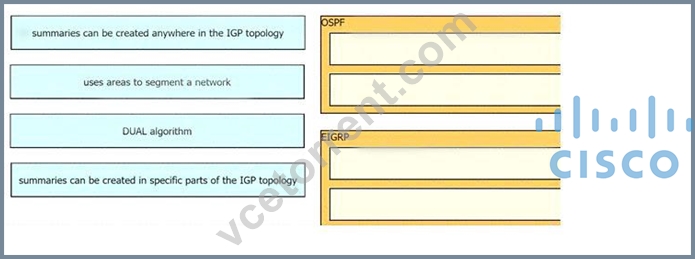

Drag and Drop the decryptions from the left onto the routing protocol they describe on the right.
Answer:
Explanation:
NEW QUESTION 70
Which statement about route targets is true when using VRF-Lite?
- A. Route targets uniquely identify the customer routing table.
- B. Route targets allow customers to be assigned overlapping addresses.
- C. Route targets control the import and export of routes into a customer routing table.
- D. When BGP is configured, route targets are transmitted as BGP standard communities.
Answer: C
Explanation:
Reference:
Answer 'Route targets allow customers to be assigned overlapping addresses' and answer 'Route targets uniquely identify the customer routing table' are not correct as only route distinguisher (RD) identifies the customer routing table and "allows customers to be assigned overlapping addresses".
Answer 'When BGP is configured, route targets are transmitted as BGP standard communities' is not correct as "When BGP is configured, route targets are transmitted as BGP extended communities"
NEW QUESTION 71
A server running Linux is providing support for virtual machines along with DNS and DHCP services for a small business. Which technology does this represent?
- A. Type 2 hypervisor
- B. hardware pass-thru
- C. Type 1 hypervisor
- D. container
Answer: A
Explanation:
In contrast to type 1 hypervisor, a type 2 hypervisor (or hosted hypervisor) runs on top of an operating system and not the physical hardware directly. A big advantage of Type 2 hypervisors is that management console software is not required. Examples of type 2 hypervisor are VMware Workstation (which can run on Windows, Mac and Linux) or Microsoft Virtual PC (only runs on Windows).
NEW QUESTION 72

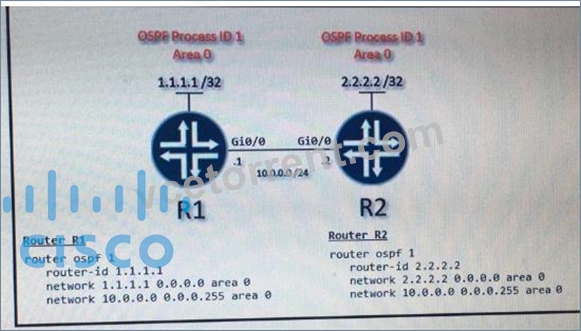

Refer to the exhibit.

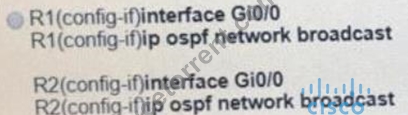

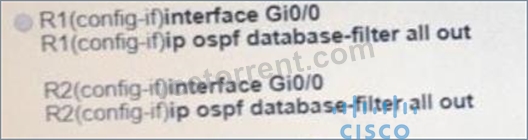

A network engineer is configuring OSPF between router R1 and router R2. The engineer must ensure that a DR/BDR election does not occur on the Gigabit Ethernet interfaces in area 0. Which configuration set accomplishes this goal?

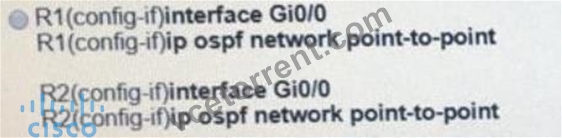

A)
B)
C)
D)
- A. Option D
- B. Option B
- C. Option A
- D. Option C
Answer: C
Explanation:
Explanation
Broadcast and Non-Broadcast networks elect DR/BDR while Point-topoint/
multipoint do not elect DR/BDR. Therefore we have to set the two Gi0/0
interfaces to point-to-point or point-to-multipoint network to ensure that a DR/BDR election does not occur.
NEW QUESTION 73
Which outcome is achieved with this Python code?
- A. displays the output of the show command in a formatted way
- B. connects to a Cisco device using SSH and exports the BGP table for the prefix
- C. connects to a Cisco device using Telnet and exports the routing table information
- D. connects to a Cisco device using SSH and exports the routing table information
Answer: B
NEW QUESTION 74

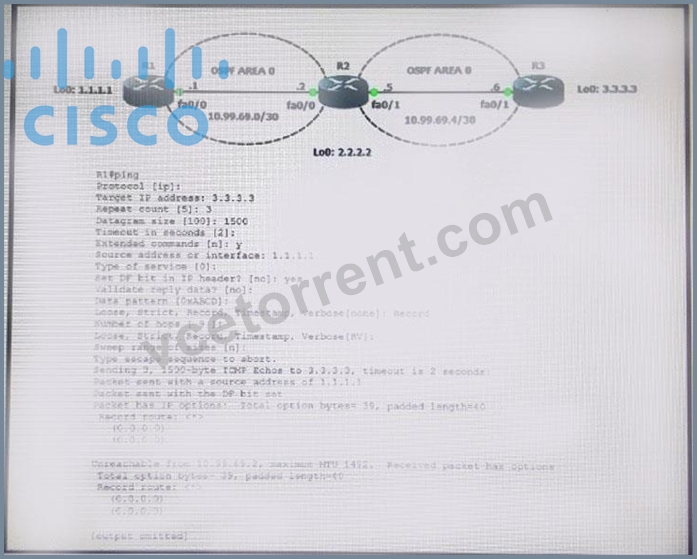

Refer to the exhibit. R1 is able to ping the R3 fa0/1 interface. Why do the extended pings fail?
- A. The DF bit has been set
- B. R2 and R3 do not have an OSPF adjacency
- C. The maximum packet size accepted by the command is 1476 bytes.
- D. R3 is missing a return route to 10.99.69.0/30
Answer: A
NEW QUESTION 75

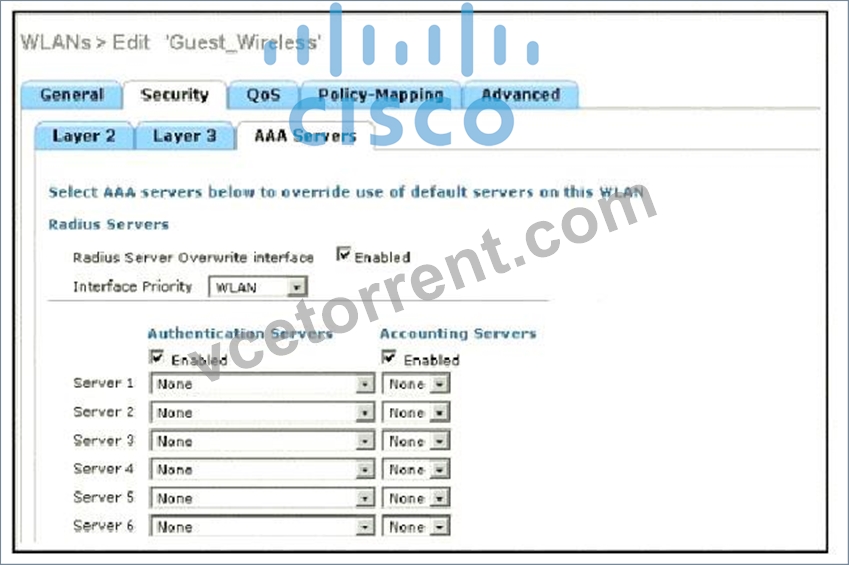

Refer to the exhibit.
Assuming the WLC's interfaces are not in the same subnet as the RADIUS server, which interface would the WLC use as the source for all RADIUS-related traffic?
- A. the interface specified on the WLAN configuration
- B. the controller virtual interface
- C. any interface configured on the WLC
- D. the controller management interface
Answer: A
NEW QUESTION 76

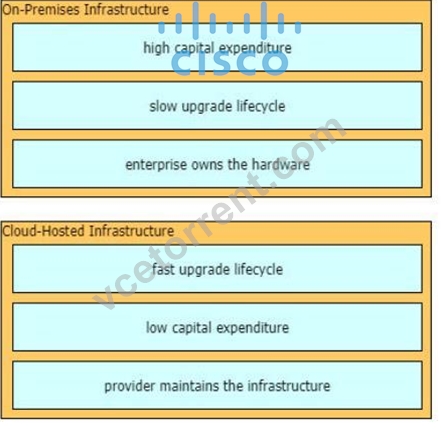

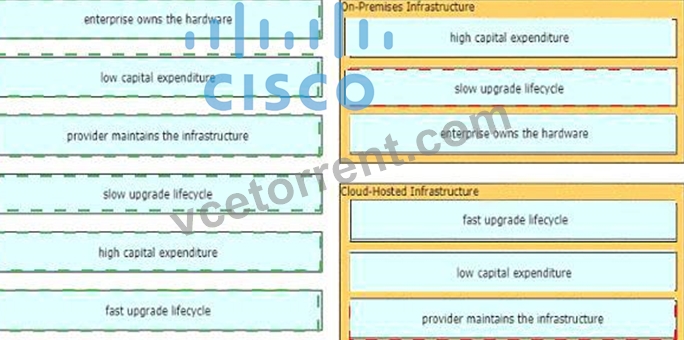

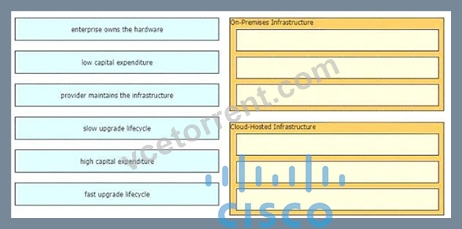

Drag and drop the characteristics from the left onto the infrastructure types on the right.
Answer:
Explanation:
Explanation
NEW QUESTION 77
Refer to the exhibit.
Which LISP component do routers in the public IP network use to
forward traffic between the two networks?
- A. map server
- B. RLOC
- C. map resolver
- D. EID
Answer: B
Explanation:
Explanation
Locator ID Separation Protocol (LISP) is a network architecture and protocol that implements the use of two namespaces instead of a single IP address:
+ Endpoint identifiers (EIDs) - assigned to end hosts.
+ Routing locators (RLOCs) - assigned to devices (primarily routers) that make up the global routing system.
Reference: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/iproute_lisp/configuration/xe-
3s/irl-xe-3s-book/irl-overview.html
NEW QUESTION 78

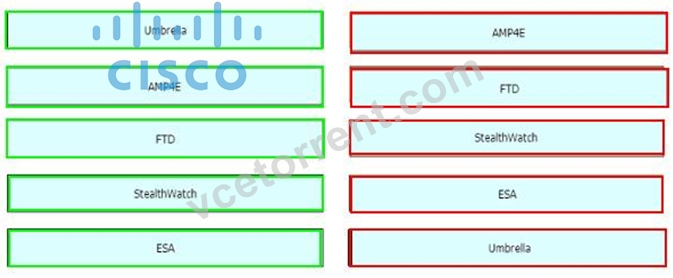

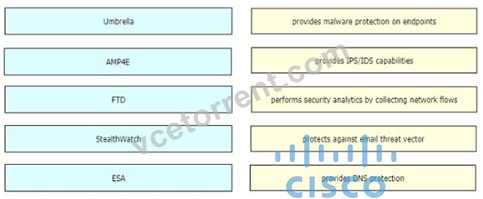

Drag and drop the threat defense solutions from the left onto their descriptions on the right.
Answer:
Explanation:
NEW QUESTION 79

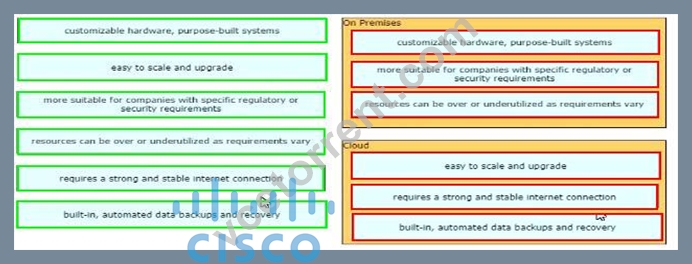

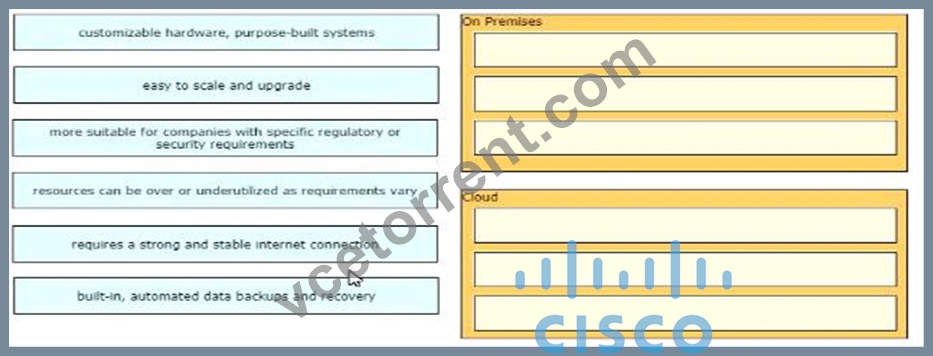

Drag and drop the characteristics from the left onto the correct infrastructure deployment types on the right.
Answer:
Explanation:
Explanation:
On premise: customizable,specific requirements,resources
Cloud: scale, built-in automated backup, strong stable internet
NEW QUESTION 80

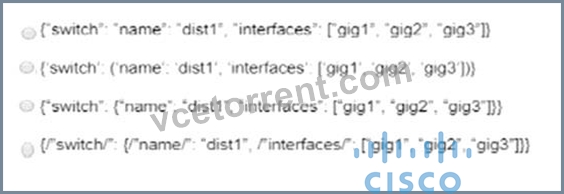

Which JSON syntax is valid?
- A. Option D
- B. Option B
- C. Option A
- D. Option C
Answer: D
NEW QUESTION 81

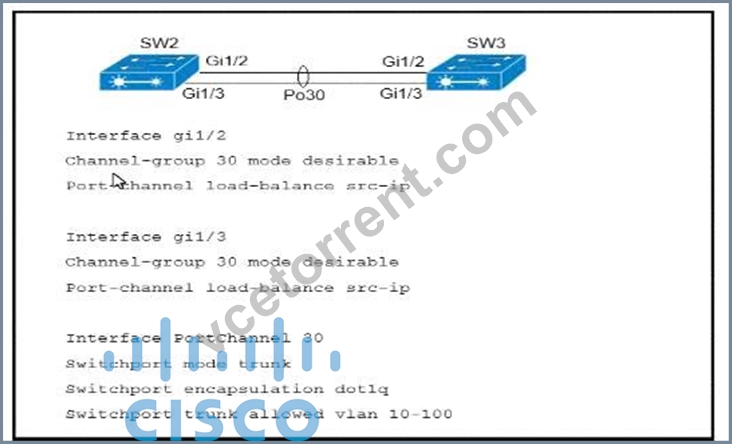

Refer to the exhibit.
A port channel is configured between SW2 and SW3. SW2 is not running a Cisco operating system. When all physical connections are mode, the port channel does not establish. Based on the configuration excerpt of SW3, what is the cause of the problem?
- A. The port-channel trunk is not allowing the native VLAN.
- B. The port-channel interface lead balance should be set to src-mac
- C. The port-channel should be set to auto.
- D. The port channel on SW2 is using an incompatible protocol.
Answer: D
Explanation:
Explanation
The Cisco switch was configured with PAgP, which is a Cisco proprietary protocol so non-Cisco switch could not communicate.
NEW QUESTION 82
Refer to the exhibit. Both controllers are in the same mobility group. Which result occurs when client 1 roams between APs that are registered to different controllers in the same WLAN?
- A. The client database entry moves from controller A to controller B.
- B. Client 1 contact controller B by using an EoIP tunnel.
- C. Client 1 users an EoIP tunnel to contact controller A.
- D. CAPWAP tunnel is created between controller A and controller B.
Answer: D
NEW QUESTION 83
What is a fact about Cisco EAP-FAST?
- A. It requires a client certificate.
- B. It is an IETF standard.
- C. It does not require a RADIUS server certificate.
- D. It operates in transparent mode.
Answer: D
NEW QUESTION 84
Which unit is used express the signal-to-noise ratio?
- A. mW
- B. dbm
- C. amp
- D. db
Answer: D
Explanation:
Reference:
NEW QUESTION 85

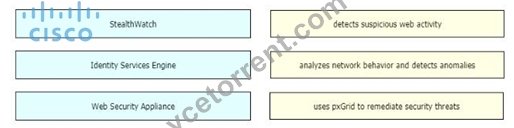

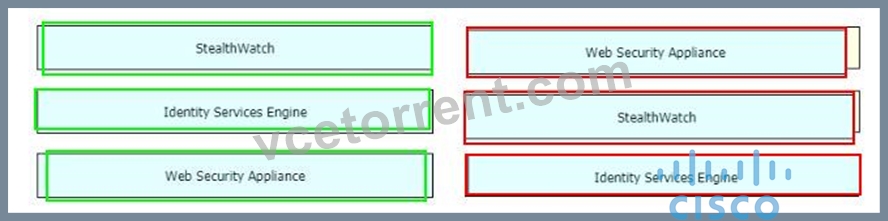

Drag and drop the solutions that comprise Cisco Cyber Threat Defense from the left onto the objectives they accomplish on the right.
Answer:
Explanation:
NEW QUESTION 86
When does a stack master lose its role?
- A. when the stack master is reset
- B. When the priority value of a stack member is changed to a higher value
- C. when a stack member fails
- D. when a switch with a higher priority is added to the stack
Answer: B
NEW QUESTION 87

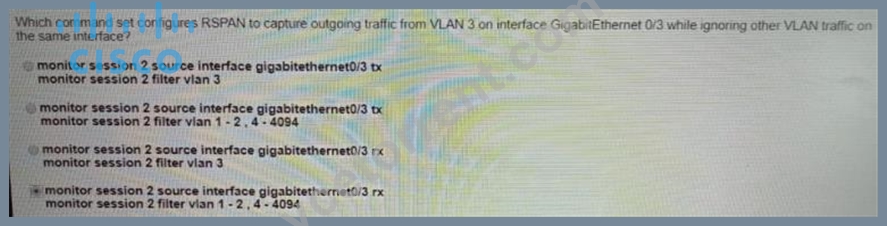

Which command set configures RSPAN to capture outgoing traffic from VLAN 3 on interface GigabitEthernet 0/3 while ignoring other VLAN traffic on the same interface?
- A. Option D
- B. Option B
- C. Option A
- D. Option C
Answer: A
NEW QUESTION 88
A local router shows an EBGP neighbor in the Active state. Which statement is true about the local router?
- A. The local router has active prefix in the forwarding table from the neighboring router
- B. The local router is receiving prefixes from the neighboring router and adding them in RIB-IN
- C. The local router is attempting to open a TCP session with the neighboring router.
- D. The local router has BGP passive mode configured for the neighboring router
Answer: C
Explanation:
The BGP session may report in the following states
1 - Idle: the initial state of a BGP connection. In this state, the BGP speaker is waiting for a BGP start event, generally either the establishment of a TCP connection or the re-establishment of a previous connection. Once the connection is established, BGP moves to the next state.
2 - Connect: In this state, BGP is waiting for the TCP connection to be formed. If the TCP connection completes, BGP will move to the OpenSent stage; if the connection cannot complete, BGP goes to Active
3 - Active: In the Active state, the BGP speaker is attempting to initiate a TCP session with the BGP speaker it wants to peer with. If this can be done, the BGP state goes to OpenSent state.
4 - OpenSent: the BGP speaker is waiting to receive an OPEN message from the remote BGP speaker
5 - OpenConfirm: Once the BGP speaker receives the OPEN message and no error is detected, the BGP speaker sends a KEEPALIVE message to the remote BGP speaker
6 - Established: All of the neighbor negotiations are complete. You will see a number, which tells us the number of prefixes the router has received from a neighbor or peer group.
NEW QUESTION 89
What is the result when an active route processor fails that combines NSF with SSO?
- A. An NSF-capable device immediately updates the standby route processor RIB without churning the network.
- B. The standby route processor temporarily forwards packets until route convergence is complete.
- C. An NSF-aware device immediately updates the standby route processor RIB without churning the network.
- D. The standby route processor immediately takes control and forwards packets along known routes.
Answer: D
NEW QUESTION 90
......
